主要用途与概况/Purpose and introduction

该产量线由理瓶机(上瓶台)、超声心动图波洗瓶机，分装(旋盖)加塞机，轧盖机，标贴机等生产设备組成On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

亮点/characteristic：

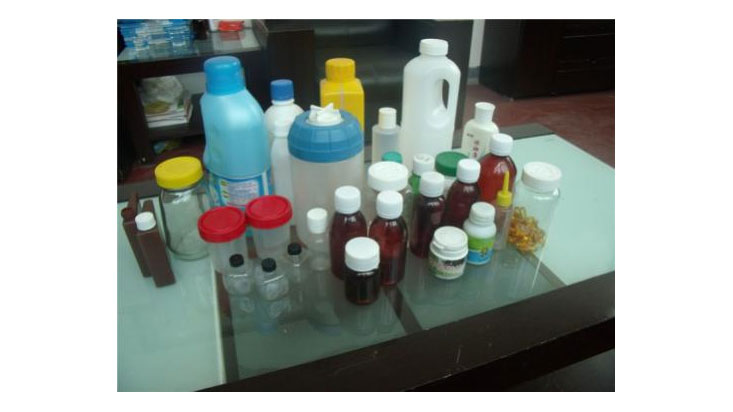

该出产线适用于 30-500ml品牌品牌的灌装线加塞密封，改换些许规格参数塑胶片模后，既适用于塑胶片瓶，也适用于夹层玻璃罐子。具备有适用时间范围广泛的，调准简单方便的的特点。整线出产性能；适罐子的大小样式，物块粘度指数而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技术性主要参数/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶整洁度Washing bottle cleanliness(%)	> 99
装量误差度The load error(%)	0-2
上塞通过率Plug on the percent of pass(%)	> 98
轧盖不及格率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
