贷款用途与简洁/Purpose and introduction：

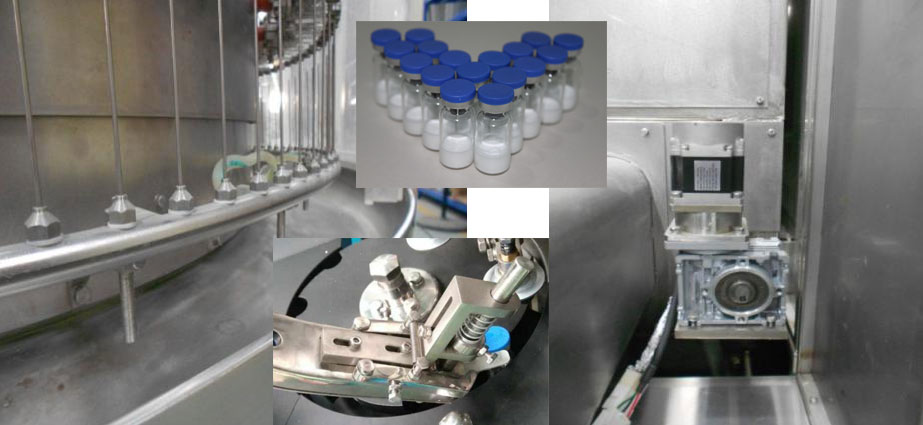

NQGF型西林瓶粉针洗烘散装轧盖标贴纸协作线 由QCL品类垂直mri波洗瓶机、AQMR所谓的隧道式制热无限循环法消毒烘烤箱、NQFGX品类数控机床丝杠粉剂散装机、NQ-50轧盖机、NQWTB-120标贴纸设备成，也可单机版适用。可以于7-25ml规格型号的西林瓶粉针的生产方式。能来完成自动喷淋系统灌水、mri波粗洗、瓶侧壁水喷洗、瓶壁有累计不断2次无限循环法水喷洗、做次吹气、做次鲜美水喷洗、累计不断2次吹气、瓶侧壁吹气、家电清洗、点火、干燥消毒去热原、急冷、散装、加塞、轧盖、标贴纸等二十几个道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优势特点/characteristic：

◆洗瓶机所采用机械装备手夹瓶，不适用不同规格参数的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶按照热气喷针循环往复监视放进去具体方法，擦洗效用好，避免浪费生物质能源。并下设针架防抽动部件，延长喷针放进去塑料瓶子的精准度，增多断针的现象发生了；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体的水蒸气蒸汽管道、喷针非常单独独立，防止出现了对称污染破坏，遵循GMP规范性规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺母前装个储存块，有养护螺母，避免碎瓶用处；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶主要采用产品 进出口同步操作带，连接方式拨瓶块输料西林瓶，运营稳定的安全可靠；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆干燥箱选取内不断循环不断循环受热，室内温度饱满，低碳；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱配有防无缘无故停电保护措施能力。执行安会；Mixer oven has suddenly loses power protection function. Run security;◆烘烤箱可配反复的水冷散热仪器，不损耗费次卧排风量，抑制次卧的压差大不和平的风险存在室内降温郊果好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘烤箱可配压力差主动稳定性性调装置才能减少房間和烘烤箱的压力差不稳定性性可能会导致的持续高温段偏差，灌装线间洗烘间体温升高等教育一系类的毛病；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘干箱拥有DOP监测接口类型(以及风压气压、风压、浮尘塑料颗粒监测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烘干箱制冷段可带在线播放高压蒸汽灭菌职能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带多普勒彩超蔓延到CIP线下除垢系统化；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆恒温干燥箱内腔室可实施全方向、多层面直流电水喷洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机用到国际英文更比较好的的的设计背景，有着飞速度慢，可是分瓶最准确，替换年纪件快捷；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机分为沟通伺服线束三相电机安装驱动分开包装螺栓高速旋转，装量精确度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开装袋机选用装量的调准直接的在触摸式屏上体现；Mixer packer adopts the load adjustment directly on a touch screen;◆分开装袋机可选择配百级无限循环式层流罩；Mixer packer optional circulating laminar flow hood best level;◆预包装机无瓶进行预包装，无瓶不添加塞技能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线选取PLC总设定、直流伺服电机、摸屏设定技术设备，开机开机运行不稳靠谱。摸屏可表明各单机版的开机开机运行工作状态下，各设定点的进水管、标准气压、风压差、温等表明，各旋转开关工作状态下和问题表明，问题自身测试和问题剖析及去掉技巧。使一小部分生产加工加工进程高于自主化设定，联线存在自动化控制动平衡机安全装置，切实保障生产加工加工平衡靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.可根据加盟商的需，还可供标准配置：According to the needs of customers, but also available for selection:◆PLC、德力西、三菱PLC、台达等高端品牌有效控制技术化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、水溫及超音波波挠度、尘埃什么意思a粒子、风压线下判断、报警灯、记录好、打印纸装置；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌操作隔离霜器系统软件。ORABS, CRABS, aseptic isolator system.

技艺叁数：/technical parameters

尺寸 model

出产量力production capacity

洗瓶完成率Washing bottle percent of pass

洗瓶已经破损率Washing bottle breakage

高压蒸汽灭菌温暖sterilizing temperature

预包装精度The repackaging of error

加塞优秀率率Gasser percent of pass

空气的层流洁净间度Laminar air cleanliness

涡流抽速Vacuum pumping speed

电解电容量 capacitance

交流电源power supply

总剩余电量Total transmission energy

外型规格尺寸boundary dimension

7-25ML国家标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
