使用与介绍：/Purpose and introduction

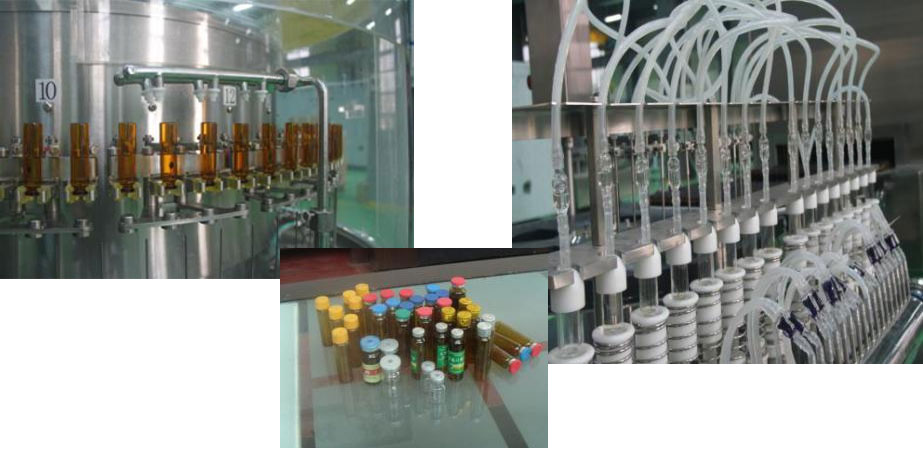

服用方式液洗烘灌轧三级三级联动线由垂直多普勒彩超检查波洗瓶机、隧道工程式自动空调 反复灭菌方法处理干燥箱、服用方式液分装设备轧盖机等分解成，非常适合于 5-30ml 等有差异 规 格服用方式液瓶的生育。可完毕对保健药品生育中安瓿瓶淋水、多普勒彩超检查波洗掉、冲水、充 气、烘干设备灭菌方法处理、蒸发、分装设备、轧盖等生产技术关键步骤的三级三级联动运作。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

作用:/characteristic

◆洗瓶机进行厂家手夹瓶，适合多尺寸的瓶里；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选择水雾喷针回转式跟踪定位读取模式，拆洗目的好，省下自然能源。并现有针架防运动保护装置，改善喷针读取罐子的更精确度，下降断针表现发生的；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整热气导压管、喷针是自由分割，规避了交叉重合污染破坏，符合国家GMP规范标准请求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺栓式前改装缓冲区块，有守护螺栓式，限制碎瓶功用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于一体化进口的发送到带，衔接拨块运输服用液，自动运行保持稳定靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱使用红外线微波加散热片，304不绣钢微波加散热片三层微波进行进行加热温匀性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆罐装轧盖机供选择配瓷质泵、不锈钢304泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装线无瓶止灌，无瓶不轧盖特点。Pieces filling without bottle filling, no bottle no rolling function.◆整线用PLC总掌握、伺服驱动器器、触屏式屏掌握科技，电脑开机运行安全稳定不靠谱。触屏式屏可出现各pc单机的电脑开机运行心态，各掌握点的出水量、空气压力、风速、温差等出现，各旋钮心态和告警出现，告警自我完善原因和告警了解及是排除手段。使整体的分娩工作完成自行化掌握，联线极具三机自动化动态平衡仪器，要确保分娩动态平衡不靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.只能根据投资者的必须要，还可供选装：According to the needs of customers, but also available for selection:◆simens、施耐德开关、三菱PLC、台达等国际品牌设定设计；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气压为、油温及彩超波刚度、颗粒塑料再生颗粒、风压在线免费判断、报案、信息、打印纸程序。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作防晒隔离霜器系統。Mixer ORABS, CRABS, aseptic isolator system.

技术应用产品参数：technical parameters

适于尺寸规格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
罐装精密度Filling accuracy(%)	≤ ± 2.5
分装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖及格率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
