的主要用途是什么与概述/Brief Introduction：

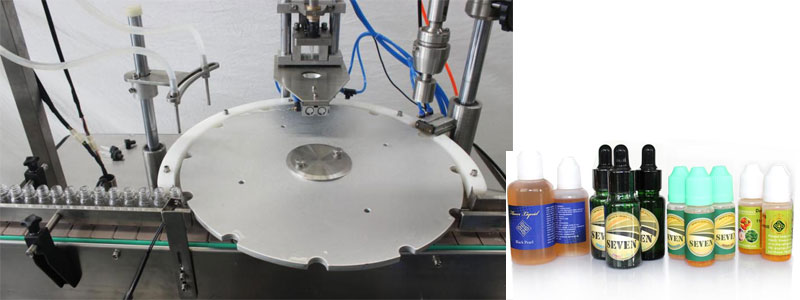

该设备可用到于2-30ML各式才质的环形扁形泡沫塑料或破璃瓶的眼药液包装线线.该设备由高准确凸轮机构学校精度等级学校给出精度等级等分盘准确wifi定位上塞上盖;降线速度凸轮机构学校传输给出旋盖头的举升;恒最大扭矩旋盖;胃排空泵收费包装线线;接触屏操纵.无瓶不包装线线,没加内塞,外盖.具准确wifi定位准确,传输稳步,保护的瓶盖子,收费准.方法简简单单等的优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特别/Characteristic：

◆微电子设备设置好、装量准确度、实操简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机结构电机转速可做出无极变速变頻控速。the mainframe running speed is stepless frequency conversion.◆生产方式量手动按量调整。the product quantity can be controlled. ◆多个故障问题警告功效(如低风压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新宕机用途，对某一道路诞生连继无装罐、无内塞具体情况可重新宕机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平参数设置/Main Technical Parameters：

适用人群金桥铜业跨接线的截面积大小Filling Volume	2-30ml
产量力Productivity	30-60瓶/分  70-100瓶/分30-60bottles/min    7ܫ0-100bottles/m🔜in
装灌精密度Filling Precision	≤±1%
开关电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
智能上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
效率 Power	2.0 kw
机械设备毛重Weight	550 kg
外貌长宽比Dimension	1800*1000*1500mm
