领域与简洁/Brief introduction：

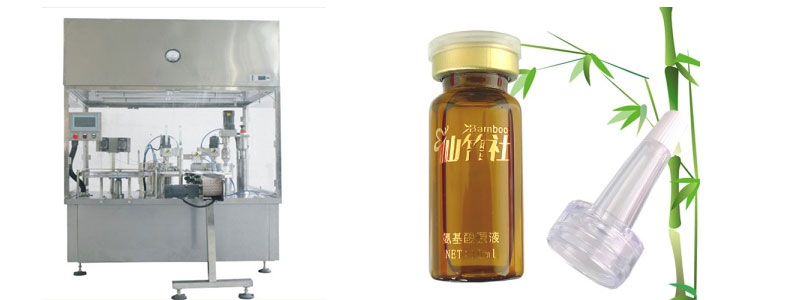

滤油机是在招引和获取其他国家最先进技术水平的前提上，我来品牌自己产品研发的1款的专业重视西林瓶的包装、上塞、旋（轧）盖机。滤油机分为英国全进口清关高表面粗糙度全封式气缸度数工序器，表面粗糙度不高，程序运行耐用，运用壽命长。该度数器框架简简单单，持续运用不要处理。远程服务器首要可用以于各个小分子量介质液体的罐装、压塞及旋（轧）盖，如植物精油、皮下注射剂等。范围广用以食品饮料、药业、化工品相关行业及科研课题领域行业。这手机既可单人生产加工加工，又可与洗瓶机、变干机等生产加工设备构成三级联动生产加工加工线。完整按照國家GMP让。远程服务器能否不同大家让强制升级电气开关性能。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

特别/Characteristic:：

◆人机对战用户界面设计、操作的直接方面、PLC掌握，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆调频的调节、分娩运行速度相同的调节、自主记数。Frequency control, the production rate be adjusted automatically count  ◆全自动关机实用功能，无瓶不分装。No bottle no filling.◆圆板确定式包装，固定可以信赖。Disc positioning filling, stable and reliable.◆高把控好精度凸轮机构精度等级计把控好，分析*。High-precision cam meter control, precise positioning.◆用SUS304及316L304不锈钢加工制造，已经适用GMP规范。SUS304 and 316L stainless steel, full compliance with GMP requirements.

工艺基本参数/ technical parameters：

装量超范围Filling volume	5-50ml
装量出现偏差的原因loading error	≤ ±1%
旋（轧）盖符合标准率 Rotation (rolling) Cover pass rate:	≥99%
产量技能Production capacity	30-60瓶🌜/分 钟  高转速 70-100瓶/分 钟     迅速 30-60 bottles / min  70-100🎶 bottles / minute (high speed)
压塞率Tamponade rate	≥99%
主机电源 Power	380V/50Hz
电功率Power	2.0 kw
机器设备净含量Net weight	600 kg
外型尺寸规格 Dimension	2000*1000*1500mm
