应用与简洁/Brief Introduction：

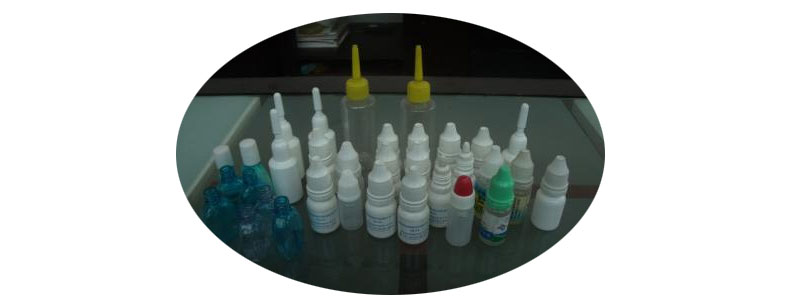

超声波焊接机适宜于2-30ML各式各样材料的环形扁形pp塑料或安全塑料瓶子的眼药液包装、电子器材烟油等小含水量包装.超声波焊接机由高准确度气缸度数医院给予度数等分盘追踪定位系统上塞上盖;加转速度气缸链传动装置给予旋盖头的调节;恒转距旋盖;消化泵测量包装;触模屏管理.无瓶不包装,没有内塞,外盖.具追踪定位系统精度,链传动装置平衡,保护好盖子,测量准.运作容易等优点和缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势/Characteristic：

◆微电子设备控制、装量准确、实操利于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备转速比可采取无极变频柜变频调速。the mainframe running speed is stepless frequency conversion.◆生產量手动参考值管理。the product quantity can be controlled. ◆很多系统故障系统提示功能表(如低气压表。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆一键关机功能表，对任意路轨发生不断无装灌、无内塞前提可一键关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术工艺运作/Main Technical Parameters：

适用人群外形尺寸Filling Volume	2-30ml
生育力量Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
装灌要求Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
效率 Power	2.0 kw
刷卡机毛重Weight	550 kg
样貌长宽比Dimension	1800*1000*1500mm
