贷款用途与简洁/ Brief Introduction：

本出产线由全主动理瓶机、辊筒式洗瓶机、过滤除菌空气干燥机、眼麻醉药分装旋盖机、双面标贴纸机柜成，可达成理瓶、水、气的刷洗、晒干及老化清洗、分装、加塞、旋盖、标贴纸等道工序，一般用到眼麻醉药以至于他小用量稀硫酸的联线出产，也可单机游戏独有的使用。已经满足GMP要。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

特性/Characteristic：

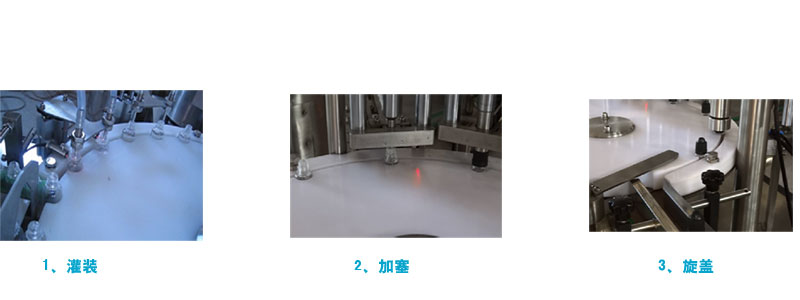

该机组方案格局合理化，自动运行稳定性、分装控制精度较高，具在中国同该行业业先进性程度。充分按照GMP规格。     眼灵药分装旋盖机已去我集团公司的三是代新产品，组队游戏界面把控，良好运动泵分装，由真空度吸机械性手取代了液压泵更有效的打塞，切实保障了维持性和不及格率。选择恒发动机功率旋盖，有无瓶不分装、无塞不上盖，无瓶无塞可自动化停止时的功能表。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技术应用指标/technical parameters：

实用技术参数/Bottle size	10-20ml
生孩子的能力/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用纯净水压力差/ Hydraulic Pressure Mpa	0.3Mpa
用使用量量 /water consumption	0.5 m3/h
是否干净收缩水汽工作压力 /Clean compressed air pressure	0.6-0.8Mpa
净化缩短的空气剂量/Clean compressed air consumption	300 L/min
电压/Voltage	380V/50Hz
输出功率/Power	5.5 kw
工作线总长/Dimension	11000*1500*1900mm
