适用范围与筒介/Brief Introduction：

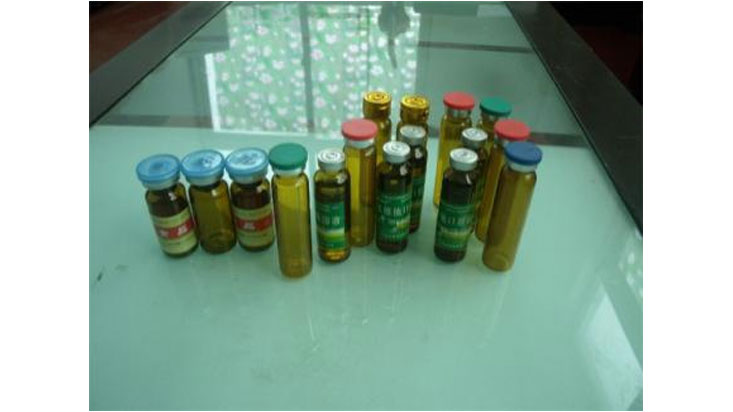

机器组为10-20ml补血服食液方式液气体装罐生孩子线线生育线中的常见机器。是由洗瓶、烘干阶段机二合一机和装罐生孩子线线塑封处二合一机所成分，能自主实现补血服食液方式液瓶的洗瓶、烘干阶段机、装罐生孩子线线和塑封处等行动，是补血服食液方式液生育产家更佳的智能化机器，根本符合让GMP让。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

共同点/Characteristic：

◆装量精准，禁止漏滴。罐装定位精程度高。High filling accuracy.◆变频式魔宗可控硅调压，产生强度快可调节，先选择有差异的产生强度快。Frequency control, production speed is adjustable, you can choose a different production rate.◆各个电部件均应用进口商前十强国产品牌。All electrical components are imported famous brands.◆自动化界面显示运算功能性。Automatically countting function.◆调节选择日本队三菱数控系统PLC，抗扰乱，运转安全。Controlled by Mitsubishi PLC◆能力不稳，维保维修保养不方便。Stable performance, easy maintenance.◆裸机外表层选择SUS304不锈铝制造、与物料清单排斥那部分选择316L不透钢圆管。裸机根本按GMP的标准设计的概念。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

技术设备技术指标/technical parameters：

适用于产品规格/Bottle size	10-20ml
的生产意识/Capacity	60-90瓶/半小时/60-90bottles/min
烘干功能工作温度/Dryer tempreture	100-300°
回收河水量/Water wastage	0.5m3/h
净化器水耗量/Purifying water consumption	0.3m3/h
装量gps精度/Filling precision	≤1%
主机电源/Voltage	380V/50Hz
热效率/Power	33KW
生孩子线总长/Dimension	3500×1500×1600mm
